What External Balancing Equipment Really Does for Nashville Audio Pros

In a city that breathes music, Nashville's recording studios, live venues, and post-production houses demand signal integrity from the moment a microphone picks up a note until the final mix reaches the listener. External balancing equipment—often overlooked by beginners—is the unsung hero that ensures that journey remains clean, hum-free, and true to the original performance. These devices manage impedance mismatches, convert unbalanced signals (like those from guitar pickups or consumer gear) to balanced, professional-grade signals, and provide galvanic isolation to break ground loops that cause annoying buzzes and hums.

Nashville engineers often work with a mix of vintage and modern gear: a 1960s tube amp might feed a digital interface, or a pedalboard might route into a studio console. Without proper balancing, the signal degrades, noise creeps in, and the magic of the performance is lost. This article dives deep into the top external balancing equipment trusted by Nashville's audio elites, explains the technology behind them, and offers practical guidance for choosing the right tool for your rig.

Key Technical Considerations Before Buying

Impedance Matching and Signal Strength

Every audio device has an output impedance and an input impedance. The ideal rule is that the load impedance should be at least ten times the source impedance. When impedances are mismatched, signal level drops, frequency response shifts, and noise can increase. External balancing devices typically include transformers or active electronics to present the correct impedance to both the source and the destination, preserving signal fidelity across long cable runs—common in large Nashville venues like the Ryman Auditorium or the Bridgestone Arena.

Balanced vs. Unbalanced Cables

Consumer gear (guitars, keyboards, consumer audio players) usually outputs unbalanced signals on TS (tip-sleeve) connectors. Professional audio gear expects balanced signals on XLR or TRS (tip-ring-sleeve). A direct box (DI) or balancing converter bridges this gap. The balanced signal uses two conductors carrying the audio signal in opposite polarity plus a ground, allowing the receiving device to cancel out any noise picked up along the cable—essential for long runs on stage or in a studio with many cable paths.

Ground Lift and Isolation

Ground loops occur when multiple devices are connected to different electrical grounds, creating a hum at 60 Hz (or 50 Hz in some regions). Most professional balancing devices include a ground-lift switch that disconnects the audio ground from the chassis ground, breaking the loop without harming signal quality. Transformers also provide galvanic isolation, physically separating the input and output circuits, which is why transformer-based DI boxes like the Radial JDI are so highly regarded in Nashville's demanding environment.

Top External Balancing Devices Used by Nashville Professionals

The following devices represent the current favorites among the city's top engineers, session musicians, and live-sound techs. Each has unique strengths that make it suited for particular scenarios, from intimate songwriter rounds at the Bluebird Cafe to full-throttle arena tours.

Radial JDI Duplex

Arguably the most common DI box on Nashville stages and in recording control rooms, the Radial JDI Duplex features two independent channels with Jensen transformers. Its sound is transparent—meaning it adds minimal coloration—while providing excellent headroom and low noise. The Jenson transformer ensures a natural, musical tone that doesn't roll off highs or add phase shifts. The "Duplex" name refers to its ability to handle two separate instruments or outputs at once, making it ideal for stereo keyboards or dual-guitar setups. Its book-style case with an internal I-beam construction protects the components during road travel, a feature appreciated by touring engineers who need gear that survives the bus.

Radial ProD8

For venues and studios running multiple sources—say, an eight-piece band with several acoustic instruments and a keyboard rig—the Radial ProD8 offers eight channels of passive direct injection in a single 1U rack space. Each channel includes a ground lift, a -15 dB pad for hot signals, and a parallel output for direct feed to a tuner or amp. The ProD8 uses Radial's own transformers, which are slightly less expensive than the Jensen units but still deliver excellent isolation and frequency response. This unit is a staple in Nashville's larger rehearsal rooms and house-of-worship installations.

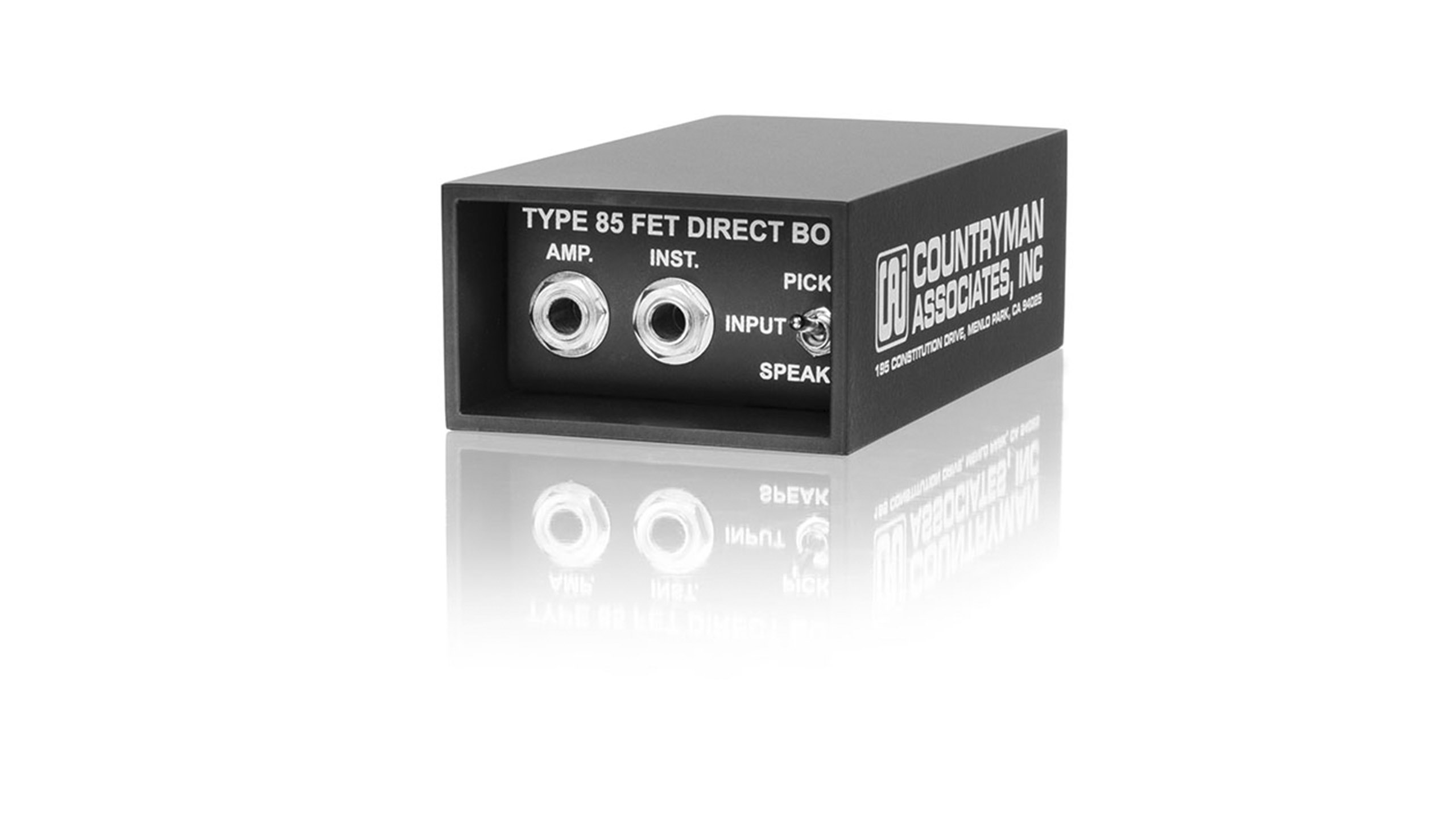

Countryman Type 85

The Countryman Type 85 is a compact, active DI box that works with both instrument and speaker-level signals. Its standout feature is a three-position attenuation pad (0 dB, -20 dB, -40 dB) that lets it handle everything from a passive pickup to a high-output active bass or even a power-amp output. The active circuitry provides very high input impedance, preserving the tone of passive pickups. It also includes a ground-lift switch and a high-pass filter that can roll off subsonic rumble. Nashville session players love the Type 85 for its small footprint—it fits in a gig bag pocket—and its ability to handle the unpredictable level changes that happen during live broadcasts or recording with vintage amps.

Behringer MIC100

While Behringer is often seen as a budget brand, the MIC100 tube preamp/DI box earns its place on this list because it offers a very affordable way to get phantom-powered balancing and a touch of tube warmth. It includes a 12AX7 vacuum tube that can be driven to add subtle saturation, and the XLR output is fully balanced. The MIC100 is popular in project studios and smaller Nashville venues where budget is a concern but the engineer still wants the option of tube tone. It is important to note that the MIC100 is not a true passive balancing device; it requires phantom power (or a battery) to operate, and its transformer-less output may not provide the same level of isolation as a high-end passive box. However, for the price, it is a capable solution for singer-songwriters and podcasters.

ART CleanBox Pro

The ART CleanBox Pro is a two-channel, transformer-balanced solution that lives in a compact half-rack enclosure. It provides +48V phantom power, a -20 dB pad, a ground-lift switch, and both 1/4-inch and XLR inputs and outputs. Its transformer-based design offers good isolation, and the CleanBox Pro can handle both line-level and instrument-level signals. In Nashville, it is often used as a permanent install in studio patchbays or as a mobile rack unit for live sound. Engineers appreciate its clean, quiet operation and the convenience of having two independent channels in a small package. It is a solid middle-ground choice between budget-friendly options and high-end Radial or Countryman units.

How to Integrate External Balancing Into Your Signal Chain

Placement matters. For a standard guitar or keyboard setup, connect the unbalanced instrument cable from the source to the input of the DI box. Then run a balanced XLR cable from the DI output to the microphone preamp or the stage box. If the DI box has a "thru" or "parallel" output, you can send the original unbalanced signal to the player's amp on stage while the balanced feed goes to the front-of-house mixer—this is standard practice in live sound.

In a recording studio, you may use balancing equipment to connect consumer-level gear (like a CD player or a synthesizer with unbalanced outputs) to an audio interface that only has XLR inputs with phantom power. Some interfaces have built-in DI inputs, but an external box often gives you better control over ground loops and signal conditioning.

For longer cable runs (over 50 feet), always use balanced connections. The twisted-pair wiring and differential input of the receiving device cancels electromagnetic interference, which causes hum in unbalanced lines. This is critical in Nashville's numerous historic buildings that may have less-than-ideal electrical wiring.

Maintenance and Best Practices for Longevity

External balancing equipment, especially passive DI boxes with transformers, requires minimal maintenance but still benefits from regular care. Keep connectors clean and free of oxidation; use contact cleaner on XLR and 1/4-inch jacks if you notice crackling. Check the ground-lift switch to ensure it isn't stuck or damaged—a broken switch can cause hum or loss of signal. For active boxes (like the Countryman Type 85 or the ART CleanBox Pro), replace the battery at regular intervals; a dying battery can cause distortion or loss of headroom. Store units in padded cases when transporting, and avoid exposing them to extreme heat or moisture. Nashville summers are humid, and leaving gear in a hot car can degrade internal components over time.

To dive deeper into specific products and technical concepts, check out these resources:

Final Thoughts on Nashville's Balancing Gear Choices

Whether you are engineering a platinum-selling record in a Music Row studio or mixing live sound at the Grand Ole Opry, the quality of your external balancing equipment directly impacts the final sound. Nashville's professionals gravitate toward reliable, road-tested gear that offers isolation, transparency, and versatility. The Radial JDI Duplex remains the gold standard for two-channel passive performance, while the Countryman Type 85 and ART CleanBox Pro provide excellent options for active and compact needs. The Behringer MIC100 serves as an affordable entry point for those just starting to build their signal chain. By understanding the technical principles and matching the device to your specific application, you can ensure that the music—the soul of Nashville—comes through loud, clear, and noise-free.
