Rally racing is one of the most demanding motorsports on earth. Crews hurl purpose‑built cars over gravel, tarmac, snow, and mud at triple‑digit speeds, often just meters from trees, rocks, and cliffs. In such an environment, survival depends on more than skill—it depends on the quality and correct use of safety equipment. At the center of that safety system is the racing harness. More than a seat belt, a properly designed and installed harness is the primary link between the driver, the seat, and the chassis. This article explains what racing harnesses are, the different types used in rallying, how to install and maintain them, and the regulations that govern their use.

What Are Racing Harnesses?

A racing harness is a multi‑point restraint system designed to hold an occupant firmly in place under extreme deceleration, cornering forces, and impacts. Unlike a standard three‑point seat belt, which allows considerable torso movement and can cause submarining (sliding under the lap belt), a racing harness uses multiple straps to distribute crash loads across the strongest parts of the body: the shoulders, pelvis, and chest. This greatly reduces the risk of head and spine injuries by limiting excursion and keeping the driver properly positioned relative to the seat, roll cage, and head‑and‑neck restraint (HANS) device.

Modern harnesses are made from high‑tenacity polyester webbing (typically 3 inches wide for lap belts and 2–3 inches for shoulder straps), with metal hardware such as cam‑lock or latch‑and‑link buckles. The webbing is treated with UV stabilizers and is designed to stretch slightly under load to absorb energy, then lock to prevent further extension. Every component is engineered to meet strict international standards—most notably those issued by the FIA (Fédération Internationale de l'Automobile) or SFI Foundation in North America.

Types of Racing Harnesses Used in Rally Racing

Rally cars can be fitted with several harness configurations. The choice depends on the series regulations, the type of seat, and the balance between freedom of movement and restraint. Below are the most common types:

Five‑Point Harness

The five‑point harness is the most widely used configuration in rallying. It consists of two shoulder straps, two lap straps, and a single crotch strap (anti‑submarine strap) that passes between the legs and attaches to the lap buckle or a dedicated central point. This setup prevents the lap belt from riding up over the pelvis in a frontal impact and is considered the minimum standard for most rally events. The crotch strap is usually 2 inches wide and is adjustable to fit the driver snugly.

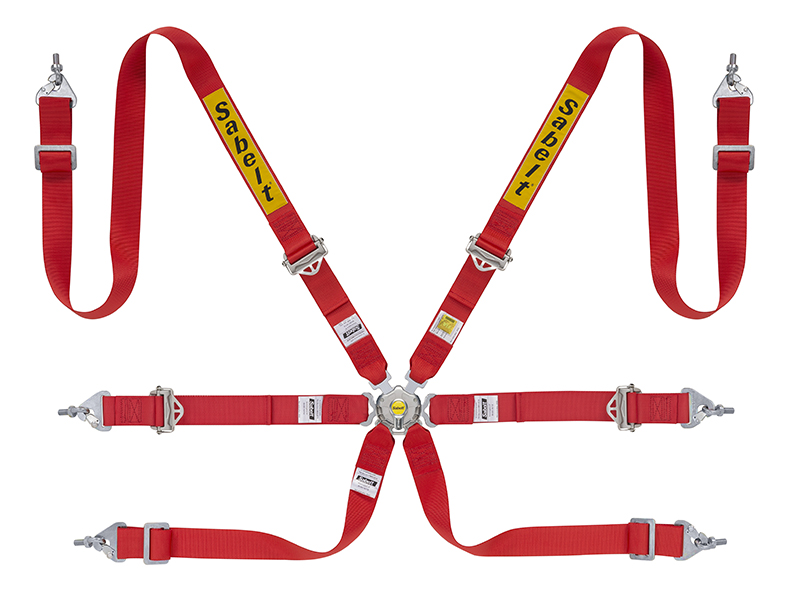

Six‑Point Harness

A six‑point harness adds a second crotch strap (or a V‑shaped pair) for even more anti‑submarine protection. This is often preferred by drivers in extremely competitive categories—such as WRC or national championship classes—where the additional strap helps keep the pelvis anchored during heavy braking and jumps. Many drivers find the six‑point configuration more comfortable because it distributes the load across two straps instead of one, reducing pressure on the perineum. It also allows the lap belt to remain lower on the hips, which is biomechanically safer.

Four‑Point Harness

Four‑point harnesses (two shoulder and two lap straps, no crotch strap) are uncommon in modern rallying due to the risk of submarining. However, they may appear in vintage‑class cars or low‑level recreational events where regulations are less strict. Most safety experts recommend avoiding four‑point harnesses for rally use unless they are fitted with an anti‑submarine feature integrated into the lap belt design.

Seven‑Point and Other Systems

Some high‑level rally cars use a seven‑point harness, which adds a third crotch strap or a pair of side straps (sometimes called “hip straps”) that attach from the lap belt to the floor or seat mount. These are rare and usually required by specific series rules. Most drivers find that a properly adjusted six‑point harness provides all the restraint needed.

Key Differences from Standard Seat Belts

Understanding why a road‑car seat belt is insufficient for rally racing is important. Standard three‑point belts are designed for frontal crashes with a fixed seat position and no helmet. In a rally car, the driver wears a helmet and HANS device, and the seat is often a fixed‑back shell with high side bolsters. A road belt cannot keep the driver’s head from hitting the steering wheel or roll cage during a crash because it allows too much torso movement. Moreover, road belts do not have crotch straps, so the lap belt can slide upward over the hip bones, crushing internal organs. Racing harnesses are also made from materials that resist the high temperatures and abrasive wear common in a race car environment.

Importance of Proper Installation and Mounting

Having the best harness in the world is useless if it is installed incorrectly. In rallying, harness mounting points must be attached to the chassis or roll cage, not to the seat or floor panels. The FIA specifies that lap belt anchors must be located within a specific angular zone (typically between 20° and 45° from horizontal when viewed from the side) to prevent the belt from riding up. Shoulder straps should run straight back from the occupant’s shoulders—without bending around the side of the seat—and should be mounted to a strong point on the cage or a crossbar. If the seat has shoulder belt pass‑through slots, the straps must pass through those slots exactly at the correct height.

Many rally harnesses are designed to work with a HANS device. The shoulder straps must be wide enough (2 inches or 50 mm) and must have a specific design that allows the HANS anchors to slide freely. Using a harness without proper HANS compatibility can defeat the safety benefit of the head‑and‑neck restraint.

Mounting Hardware and Anchors

All bolts used for harness mounting should be of high‑tensile steel (Grade 8.8 or equivalent) and must be secured with locking nuts or safety wire. Eye‑bolts are preferred over hook‑end straps because they provide a more reliable connection. Lap belt mounts should be attached to the chassis using threaded plates or weld‑in brackets that are reinforced and load‑tested. Never use standard seat‑belt mounting holes intended for road belts—they are not designed for the loads generated in a rally crash.

Regulations and Safety Standards

Governing bodies such as the FIA and national motorsport authorities (e.g., Rally America, Motorsport UK, ARA) mandate that all harnesses used in sanctioned events must be FIA homologated or otherwise certified. The current standard is FIA 8853‑2016, which replaced older standards (8853/98). Harnesses must display a valid FIA homologation tag, and many organizations require that the harness be replaced or recertified every five years from the date of manufacture—even if the webbing looks perfect. The SFI 16.1 standard is common in North American events for some classes, but for international rally competition, FIA approval is essential.

It is also critical to check the expiry date of the harness. Webbing deteriorates from UV exposure, sweat, and dirt, and the metal buckles can weaken over time. Using an expired harness in a serious crash may result in webbing failure or buckle release.

Helmet and Seat Compatibility

The harness is not an isolated component. It must work in concert with the seat, helmet, and HANS device. The seat must have proper shoulder belt slots at the correct height so that the straps do not pull downward on the driver’s shoulders. If the seat is too reclined or the slots are misaligned, the harness can induce spinal compression in a crash. The HANS device must also be able to slide freely on the shoulder straps—this requires that the straps be made of a slick material or have a designated “slip zone.”

Harness Maintenance and Replacement

A racing harness is a wearable safety item. It should be inspected at the start of every rally weekend. Look for frayed edges, cuts, loose stitching, discolored webbing (sign of UV damage), and corrosion on buckles. The quick‑release cam‑lock mechanism must be actuated smoothly without sticking. If the harness has been subjected to a crash—even a minor impact that loads the straps—it should be replaced immediately. The webbing may have stretched to its limit and will not provide the same protection in a subsequent crash.

Cleaning is important. Sweat and dirt can cause the webbing to chafe and break down. Use only mild soap and water. Never use bleach, degreasers, or machine washing. Allow the harness to air dry away from direct sunlight. Store the harness in a cool, dark place when not in use.

Choosing the Right Harness for Your Rally Car

Newcomers to rallying often ask which harness is “best.” The answer depends on budget, seat type, and class regulations. Reputable manufacturers include Sabelt, Schroth, Willans, Takata, and RaceQuip. Look for FIA or SFI certification tags. For most rally cars, a six‑point harness with a cam‑lock buckle is the gold standard. Cam‑locks are easier to release quickly in an emergency than latch‑and‑link buckles, and they are less likely to open accidentally. Some harnesses come with asymmetrical shoulder straps (one long, one short) designed for cars with a central driver position—check which side the driver sits on.

Also consider the type of adjuster. Shoulder straps can be adjusted with a pull‑up system (popular in rallying) or a conventional lever‑lock. Pull‑up adjusters are simpler and lighter, but they must be mounted so that the tail of the strap does not get caught in the seat mechanism.

External Resources

Conclusion

Racing harnesses are a cornerstone of rally safety. They prevent the driver and co‑driver from being thrown about the cabin, keep the HANS device effective, and reduce injury in crashes that are common in this high‑risk sport. But a harness is only as good as its installation, maintenance, and compatibility with other safety gear. Every rally competitor should understand the differences between four‑, five‑, and six‑point systems, know how to check FIA homologation dates, and inspect their harnesses before each event. Investing in a high‑quality, properly installed harness is one of the most important decisions a rally driver can make. It can be the difference between walking away from a crash and being carried away.
