Chevy 5.7 Vortec Performance Upgrades: Complete Modification Guide

The Chevrolet 5.7L Vortec (L31) engine represents the final evolution of the traditional small-block Chevy before the LS era transformed the performance landscape. Produced from 1996 to 2002, this 350 cubic inch powerhouse combined classic small-block architecture with modern Vortec cylinder head technology, creating an engine that responds exceptionally well to performance modifications.

This isn’t just another aging truck engine—it’s a surprisingly capable platform that can deliver 400+ horsepower with the right modifications while maintaining the reliability and simplicity that made small-block Chevys legendary. Whether you’re looking to wake up your GMT400 truck, build a reliable tow rig with more power, or create a budget-friendly performance engine for a project vehicle, the 5.7 Vortec offers tremendous potential at a fraction of the cost of modern performance engines.

The beauty of the Vortec platform lies in its combination of old-school simplicity with just enough modern technology to make real power. You don’t need a computer science degree to tune it, you don’t need specialty tools to work on it, and replacement parts remain affordable and widely available. This guide will show you exactly how to extract every bit of performance from your 5.7 Vortec, from basic bolt-ons costing a few hundred dollars to comprehensive builds approaching 500 horsepower.

Understanding the 5.7L Vortec Platform

Before diving into modifications, understanding what makes the L31 Vortec special—and where its limitations lie—helps you make intelligent upgrade decisions and avoid wasting money on ineffective modifications.

Engine Specifications and Architecture

The L31 5.7L Vortec brought several crucial improvements over previous 350 engines, particularly the earlier TBI (Throttle Body Injection) small-blocks. These refinements transformed the venerable small-block design into a genuinely modern engine capable of meeting 1990s emissions standards while delivering improved performance.

Core Specifications:

• Displacement: 350 cubic inches (5,735cc) providing excellent torque characteristics
• Bore x Stroke: 4.00″ x 3.48″ (classic small-block dimensions)
• Compression Ratio: 9.4:1 (ideal for forced induction potential)
• Power Rating: 255 HP @ 4,600 RPM (conservative factory tune)
• Torque Rating: 330 lb-ft @ 2,800 RPM (strong low-end grunt)
• Fuel System: Central Sequential Fuel Injection (CSFI, later MPFI)
• Ignition: Distributor-based with optical sensor (reliable, easily upgraded)

Key Design Features:

The Vortec cylinder heads represent the most significant advancement. These heads transformed the small-block’s breathing characteristics, providing flow numbers that embarrassed many aftermarket performance heads from earlier decades. More on these revolutionary heads shortly.

Hydraulic roller camshaft eliminated the maintenance requirements of flat-tappet designs while providing better valve control and durability. The roller lifters reduce friction and allow more aggressive cam profiles without reliability concerns.

One-piece rear main seal solved the chronic oil leak problems plaguing earlier small-blocks. This seemingly minor improvement made the L31 significantly more practical for daily driver applications.

Powder metal connecting rods are surprisingly strong despite their budget-oriented manufacturing process. They handle 400-450 horsepower reliably in naturally aspirated applications, though serious forced induction requires forged replacements.

Cast nodular iron crankshaft provides adequate strength for most street applications. The casting process creates a durable crank that withstands 400+ horsepower, though dedicated race builds benefit from forged steel upgrades.

High-silicon aluminum pistons reduce weight while maintaining strength. The dish design creates reasonable compression ratios that work well with pump gas while leaving room for forced induction without requiring piston replacement.

Why the Vortec Heads Matter

Understanding why everyone praises Vortec heads requires examining what makes them special. These heads revolutionized small-block performance by incorporating lessons learned from decades of racing and performance development into a factory casting.

Technical specifications that matter:

• 170cc intake runners (versus 160cc on older heads) provide better flow without sacrificing velocity
• 64cc combustion chambers create efficient, compact spaces promoting complete combustion
• Improved port velocity and swirl enhance low-speed torque and fuel atomization
• Stock flow: 190 CFM intake / 140 CFM exhaust @ 0.500″ lift—numbers that exceed many 1980s and early 1990s aftermarket performance heads

These flow numbers mean the Vortec heads support approximately 400 horsepower in naturally aspirated applications right out of the box. For comparison, the iconic Corvette LT1 heads from the same era flow only marginally better, yet cost significantly more. The Vortec heads essentially provided performance head characteristics at economy engine prices.

However, limitations exist:

Maximum valve lift of approximately 0.480″ without modifications due to retainer-to-seal clearance issues. Aggressive camshafts require machining work or aftermarket components to prevent mechanical interference.

Unique intake manifold bolt pattern requires Vortec-specific intake manifolds. You can’t bolt on earlier small-block intakes without adapter plates. This limits some options but also ensures you’re using designs optimized for the Vortec port configuration.

The relatively small intake valve size (1.94″) becomes restrictive at very high RPMs or extreme power levels. However, for street-driven applications under 450 horsepower, they’re perfectly adequate.

Platform Strengths and Weaknesses

What the 5.7 Vortec does exceptionally well:

Torque production from low RPMs makes these engines feel strong in everyday driving. The 330 lb-ft at just 2,800 RPM means you’re making usable power where trucks actually operate—not at screaming race RPMs.

Simplicity and accessibility cannot be overstated. Distributor-based ignition, straightforward fuel injection, and traditional small-block architecture mean you can perform most work with basic tools in your driveway. No special diagnostic equipment required for fundamental modifications.

Parts availability remains excellent despite the engine’s discontinuation. Decades of small-block production mean performance parts exist for every conceivable modification, often with multiple manufacturers competing on price and quality.

Modification responsiveness allows dramatic gains from relatively simple changes. The conservative factory tuning and restrictive intake/exhaust systems mean substantial power hides behind easily removed restrictions.

What holds the Vortec back:

CSFI fuel system (Central Sequential Fuel Injection) used in earlier models suffers reliability issues. The “spider” injector design fails frequently, causing drivability problems. Fortunately, conversion kits to proper multi-port injection exist and should be considered mandatory for serious performance builds.

Conservative factory tuning leaves 30-40 horsepower on the table even with zero modifications. Engineers prioritized emissions, fuel economy, and warranty concerns over peak performance. Tuning alone can recover much of this lost power.

Distributor-based ignition works well but lacks the flexibility of modern coil-on-plug systems. Tuning ignition advance requires either distributor recurving or aftermarket ignition controllers—not as simple as reprogramming modern systems.

Older engine management means tuning requires more specialized knowledge than modern systems. You can’t just plug in a laptop and start adjusting parameters—though handheld programmers simplify this for basic builds.

Basic Bolt-On Performance Upgrades

These fundamental modifications provide the foundation for any performance build, delivering noticeable improvements without requiring internal engine work or accepting drivability compromises. Start here regardless of your ultimate power goals.

1. Cold Air Intake Systems

Replacing the restrictive factory air box with a performance cold air intake represents the easiest and most popular first modification. The factory intake prioritizes silence and packaging constraints over airflow, creating unnecessary restriction.

Performance Gains: 8-15 horsepower, improved throttle response, enhanced engine sound
Cost Range: $150-400
Installation Time: 1-2 hours with basic tools

How Cold Air Intakes Work

The factory airbox uses multiple baffles, tortuous pathways, and sound-deadening materials that strangle airflow in the name of refinement. Performance intakes eliminate these restrictions through several mechanisms:

Cooler, denser air from outside the engine bay rather than hot underhood air. Every 10°F reduction in intake temperature adds approximately 1% power through increased air density.

High-flow filters with dramatically more surface area allow greater airflow without sacrificing filtration. Modern oiled cotton gauze or synthetic dry filters flow 30-50% better than restrictive paper elements while maintaining excellent particle capture.

Smooth, mandrel-bent tubes eliminate the corrugations and sharp bends that create turbulence and restriction. Maintaining consistent diameter and smooth surfaces allows air to flow efficiently.

Proper heat shielding isolates the filter from engine bay heat, maintaining cooler intake temperatures even during extended operation or traffic conditions.

Top Options for 5.7 Vortec

K&N FIPK System ($350-400): K&N’s Filter In Place Kit represents the gold standard for 5.7 Vortec applications. The mandrel-bent aluminum tube flows dramatically better than the factory plastic intake with its sharp bends and diameter restrictions. The high-flow conical filter provides 360 degrees of filtering surface while the included heat shield prevents hot air recirculation.

The million-mile warranty means you’ll never buy another air filter—simply clean and re-oil every 50,000 miles using K&N’s cleaning kit. Dyno-proven gains of 10-12 horsepower combine with noticeably improved throttle response. The deeper intake sound adds character without being obnoxious.

Spectre Performance ($150-250): Budget-conscious enthusiasts find excellent value in Spectre’s offerings. While not quite matching K&N’s polish and warranty, Spectre delivers 90% of the performance at 60% of the cost. Multiple color options allow customization matching your engine bay aesthetic.

Expect 8-10 horsepower gains—respectable for the investment. Build quality is good though not exceptional. Some owners report the clamp connections working loose over time, requiring periodic inspection and tightening.

Volant PowerCore ($300-400): Volant’s enclosed box design provides superior heat isolation compared to open-element intakes. The sealed construction prevents hot engine bay air from compromising performance during extended operation. The PowerCore filter requires no oiling, appealing to those preferring minimal maintenance.

Filtration efficiency exceeds K&N while flowing nearly as well—an impressive balance. The trade-off is less aggressive induction sound since the enclosed design muffles intake noise. For those wanting performance without announcing modifications, this represents the ideal choice.

Installation Tips

Position the intake away from engine heat sources. Even with heat shields, proximity to exhaust manifolds or radiators compromises performance. Route the intake tube to draw air from the coolest available location—typically near the fender or grille.

Ensure the MAF sensor is properly calibrated. Most intakes relocate or reorient the Mass Air Flow sensor. Follow instructions precisely regarding sensor positioning, as improper placement causes rich or lean conditions and check engine lights.

Use all provided heat shields and seals. It’s tempting to skip pieces that seem unnecessary, but proper heat isolation makes the difference between real gains and wasted money. Gaps in heat shields allow hot air recirculation, negating the benefits.

Clean and oil the filter per manufacturer specifications. Over-oiling causes MAF sensor contamination; under-oiling allows dirt into the engine. Follow the instructions precisely for optimal performance and longevity.

2. Performance Exhaust Systems

Improving exhaust flow reduces back pressure and increases power while transforming your truck’s sound from wheezy to muscular. The factory exhaust system chokes the 5.7 Vortec, sacrificing 20-30 horsepower for near-silent operation.

Headers and Manifolds

Factory cast-iron manifolds prioritize cost and simplicity over performance. The restrictive passages, sharp transitions, and minimal tuning create significant back pressure, particularly at higher RPMs where maximum power is produced.

Long-Tube Headers:

Long-tube headers provide maximum performance through optimally-tuned primary tubes. The extended length allows proper exhaust scavenging, where exiting exhaust pulses create low-pressure zones that help draw exhaust from other cylinders. This scavenging effect adds power throughout the RPM range.

Performance gains: 20-30 HP depending on the rest of your exhaust system and engine modifications. The gains become more pronounced with aggressive camshafts and other performance modifications.

Cost: $400-800 for quality headers from established manufacturers. Cheaper options exist but often feature poor fitment, thin tubing that cracks, and flanges that warp.

Brands to consider: Hooker headers provide excellent quality and proven performance. Hedman offers good value with reliable fitment. Pacesetter represents the budget choice—acceptable quality at attractive prices.

Considerations: Long-tubes typically require Y-pipe modification or replacement to mate properly with your exhaust system. Ground clearance decreases, making speed bumps and rough roads more challenging. Installation is complex, requiring substantial disassembly and several hours of work.

Shorty Headers:

Shorty headers provide a compromise between performance and practicality. They replace only the manifolds, maintaining approximately the same length while improving internal flow characteristics through smoother bends and merged collectors.

Performance gains: 10-15 HP—less than long-tubes but still meaningful. The gains come primarily from improved flow rather than scavenging effects.

Cost: $250-500 makes shorties more affordable than long-tubes. Installation is also simpler, typically requiring 3-4 hours versus 6-8 for long-tubes.

Better ground clearance maintains your truck’s off-road capability or simply prevents scraping on driveways and parking lot entrances. For daily-driven trucks, this practical advantage often outweighs the performance difference.

Easier installation means more DIYers can tackle the job themselves rather than paying shop labor rates. Shorties work well for trucks seeing varied use rather than dedicated performance applications.

Cat-Back Systems

Cat-back exhaust systems replace everything from the catalytic converters rearward, addressing muffler and pipe restrictions while maintaining emissions equipment.

Performance Gains: 10-20 HP depending on system design and how restrictive your factory exhaust is
Cost Range: $300-800
Sound: Varies dramatically by manufacturer and design

Popular Systems:

Flowmaster American Thunder: Flowmaster’s American Thunder delivers classic muscle truck sound—that deep, aggressive rumble that announces your truck’s presence. The chambered muffler design creates distinctive sound characteristics through precisely-sized chambers that cancel specific frequencies while amplifying others.

Moderate volume increase makes it louder than stock without being obnoxious to neighbors or exhausting on long highway trips. The aggressive sound during acceleration gives way to acceptable cruising volume. Available in both aluminized (budget) and stainless steel (premium) construction.

Expect 12-15 horsepower gains from reduced back pressure. The straight-through design minimizes restriction while the chambered technology provides sound control. Some drone exists in the 1,800-2,200 RPM range, typical of Flowmaster designs.

MagnaFlow Performance: MagnaFlow’s straight-through perforated core design maximizes flow while creating a deeper, more refined tone than Flowmasters. The sound is aggressive under throttle but civilized during cruising, making it ideal for trucks that must function as daily drivers.

The lifetime warranty demonstrates MagnaFlow’s confidence in their stainless steel construction. Polished tips add visual appeal, looking professional rather than aftermarket. Minimal drone across the RPM range makes highway cruising pleasant.

Performance gains of 15-18 horsepower place MagnaFlow among the top-flowing systems. The premium pricing reflects the quality materials and engineering. For enthusiasts wanting maximum performance with acceptable sound levels, this represents an excellent choice.

Borla ATAK: Borla’s Acoustically Tuned Applied Kinetics technology delivers aggressive sound without the drone that plagues many performance exhausts. Proprietary multi-core design uses straight-through cores surrounded by sound-absorbing materials, providing maximum flow while eliminating resonant frequencies.

Premium stainless steel construction ensures decades of rust-free service. The fitment quality exceeds competitors—Borla exhausts install precisely without struggling to align hangers or fighting clearance issues. Expect 15-20 horsepower gains from this top-tier system.

The aggressive sound satisfies enthusiasts wanting serious muscle truck tone. Under full throttle, the Borla screams; during cruising, it remains surprisingly civilized. The million-mile warranty provides peace of mind. Premium pricing ($700-900) reflects the engineering and quality.

Pipe Diameter Recommendations

Exhaust diameter significantly affects performance—too small chokes power, too large kills velocity and scavenging:

Stock to mild modifications: 2.5″ dual exhaust or 3″ single provides adequate flow for bolt-on builds making 300-350 horsepower. Maintains good exhaust velocity for torque.

Modified engines: 3″ dual exhaust or 4″ single supports 350-400 horsepower. The increased diameter prevents restriction at higher power levels while maintaining reasonable velocity.

High performance builds: 3″ dual exhaust becomes mandatory for engines exceeding 400 horsepower. Single 4″ exhaust works but dual 3″ provides better scavenging and allows for more creative routing.

3. ECU Tuning and Programmers

Factory PCM tuning prioritizes emissions compliance, fuel economy across various conditions, and conservative timing that runs safely on 87-octane fuel. This conservative approach leaves 20-40 horsepower untapped even on completely stock engines. Custom tuning recovers this lost power while optimizing for your specific modifications.

Performance Gains: 20-40 HP on stock engines, more with modifications
Cost Range: $200-800 depending on solution
Installation Time: 30 minutes for handheld programmers, several hours for custom tuning

How ECU Tuning Adds Power

Understanding what tuning changes helps you appreciate why it’s so effective:

Fuel mapping optimization adjusts air/fuel ratios throughout the operating range. Factory ratios run rich (12.8-13.2:1) for safety margin. Performance tunes adjust to 12.2-12.6:1 at wide-open throttle—leaner while maintaining safe combustion temperatures. This increased efficiency adds power while actually improving fuel economy during part-throttle operation.

Ignition timing advance provides the most significant gains. With premium fuel (91-93 octane), timing can advance 4-8 degrees beyond factory settings without detonation risk. More timing means the combustion pressure peak occurs at the optimal crankshaft angle for maximum power production.

Transmission shift programming affects automatic-equipped trucks dramatically. Stock programming shifts early for fuel economy. Performance tunes hold gears longer, accessing more engine power before upshifting. Increased line pressure firms shifts, reducing slippage and improving durability while enhancing the performance character.

Rev limiter removal or increase allows accessing the engine’s full power potential. Factory limiters cut power at 5,000-5,200 RPM—well below where the engine stops making power. Raising limiters to 5,800-6,000 RPM allows using the entire power band.

Speed limiter removal eliminates artificial top speed restrictions. While rarely relevant for street driving, removing these limiters prevents power cuts during performance driving.

Fan control optimization adjusts when electric cooling fans activate. Slightly raising activation temperatures reduces parasitic drag while maintaining safe operating temperatures, freeing 2-3 horsepower.

Handheld Programmers

Hypertech Max Energy ($300-400): Hypertech’s user-friendly interface makes tuning accessible to non-experts. Multiple performance levels allow selecting appropriate aggressiveness for your modifications and fuel grade. The fuel economy mode adjusts parameters for maximum efficiency during highway cruising.

Speedometer calibration for different tire sizes or gear ratios ensures accurate readings—important for both legal compliance and transmission shift point accuracy. The programmer stores your factory tune, allowing complete return to stock for dealer service or when selling the truck.

Expect 20-25 horsepower on a stock engine, more with modifications. The tunes are conservative, prioritizing reliability over absolute maximum power. For beginners wanting proven results without complexity, Hypertech delivers.

DiabloSport Predator 2 ($350-450): DiabloSport’s Predator offers more advanced tuning options for enthusiasts wanting greater control. The data logging capability records parameters during driving, allowing you to analyze performance and identify issues. This feature proves invaluable when troubleshooting or optimizing custom combinations.

Custom tune support means you can email data logs to DiabloSport’s tuners, who’ll revise your tune based on real-world results. This iterative approach extracts more power than generic preset tunes. Internet updateable software ensures you always have access to the latest features and vehicle support.

More aggressive tuning delivers 25-30 horsepower on stock engines. The transmission tuning is particularly impressive, transforming shift quality and responsiveness. Power users appreciate the depth of adjustability; beginners may find it overwhelming initially.

Superchips Flashpaq ($300-400): Superchips built their reputation on reliable tunes delivering gains without issues. Internet updateable firmware adds new features and vehicle support as Superchips refines their programming. High-altitude compensation automatically adjusts for elevation, maintaining performance in mountainous regions where air density affects power.

Transmission tuning includes multiple aggressiveness levels, allowing you to balance performance shift characteristics with longevity concerns. The interface is intuitive, making tune selection straightforward even for first-time users.

Gains of 20-25 horsepower place this in the conservative camp—you’re getting proven, safe power increases rather than pushing boundaries. For trucks that must remain reliable while gaining performance, this represents an excellent choice.

Professional Custom Tuning

Cost: $400-800 including dyno time and multiple tune revisions
Time: 3-5 hours for comprehensive tuning session
Requirements: Wideband oxygen sensors, chassis dyno, experienced tuner

Professional dyno tuning extracts maximum power while maintaining safety margins. The tuner can push timing and fuel mixture to optimal points while continuously monitoring for detonation or other issues. Real-time adjustments based on actual engine behavior provide results impossible to achieve with generic tunes.

Dyno tuning becomes essential for heavily modified engines, particularly those with custom camshafts, cylinder head work, or forced induction. The unique characteristics of these combinations require custom calibration—preset tunes won’t properly optimize such configurations.

The investment pays off through maximized power output, improved drivability, and confidence that your tune is safe. Detailed printouts showing horsepower/torque curves and air/fuel ratios provide documentation and help identify remaining restriction points.

4. Throttle Body Upgrades

The stock 75mm throttle body becomes restrictive at higher RPMs, particularly on modified engines flowing substantially more air than stock. Throttle body upgrades provide modest gains as part of comprehensive breathing improvements but deliver minimal benefit as standalone modifications.

Performance Gains: 8-15 HP with supporting modifications
Cost Range: $200-400
Installation Time: 1-2 hours

Options and Considerations

Stock bore to 78-80mm ($150 service): Professional boring services enlarge your factory throttle body, maintaining OEM quality while increasing flow. This represents the most affordable option and preserves the factory throttle position sensor calibration.

BBK 80mm ($300): BBK’s 80mm throttle body provides direct bolt-on installation with no modifications required. CNC-machined aluminum construction ensures precise tolerances and smooth airflow. The 80mm size represents the maximum practical increase before diminishing returns set in for naturally aspirated street engines.

Accufab 85mm ($400): Accufab’s 85mm throttle body flows dramatically better than stock but requires adapter plates and recalibration. The larger bore supports 450+ horsepower in naturally aspirated applications, making it worthwhile for serious builds. However, street-driven trucks with bolt-on modifications won’t benefit from the additional size.

Installation Considerations

Throttle position sensor adjustment is critical after installation. The sensor must properly read the throttle blade position throughout its travel, or drivability suffers through poor throttle response or unexpected check engine lights.

PCM relearn procedures may be necessary to allow the computer to adapt to the new throttle body’s characteristics. This typically involves a specific drive cycle or can be forced using a scan tool.

Best paired with other airflow improvements. A large throttle body on an otherwise stock engine provides minimal benefit—maybe 2-3 horsepower. Combined with intake, exhaust, and camshaft modifications, it contributes meaningfully to overall power gains.

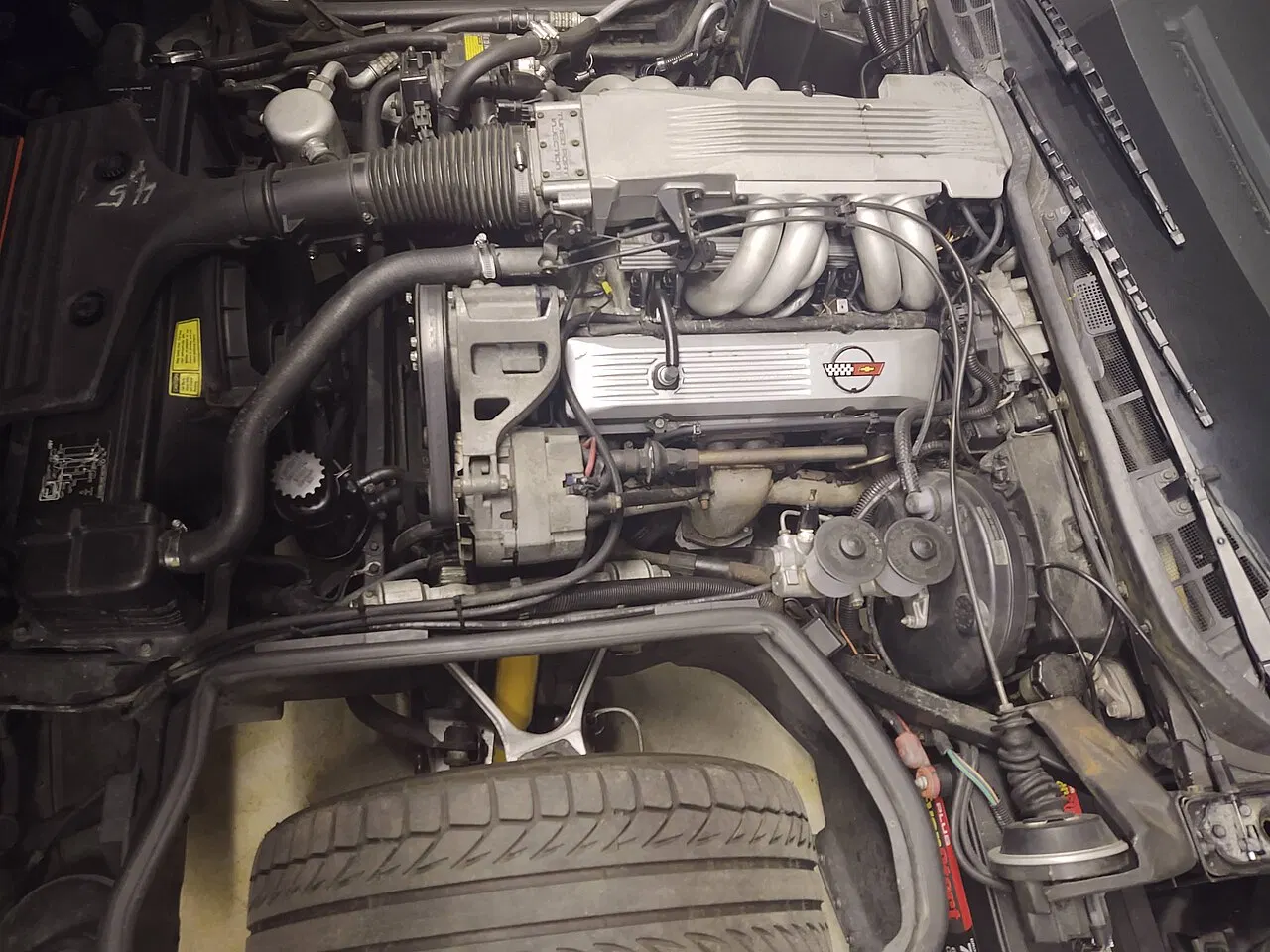

Intermediate Performance Modifications

Moving beyond bolt-ons requires more extensive work but delivers substantially greater power gains. These modifications fundamentally improve engine performance rather than simply removing restrictions.

5. High-Flow Fuel System Upgrades

Supporting adequate fuel delivery becomes critical with multiple modifications. Running out of fuel delivery causes dangerous lean conditions that lead to detonation and catastrophic engine damage.

Fuel Injectors

Stock 24 lb/hr injectors support approximately 300 horsepower before reaching maximum duty cycle. Beyond this point, the injectors can’t supply enough fuel at wide-open throttle.

Upgrade Options:

30 lb/hr injectors ($200-300 set): Mild performance builds making 300-350 horsepower require 30 lb/hr injectors. These provide adequate headroom without requiring extensive tuning adjustments. The modest increase means the PCM can often compensate through fuel trim adjustments, though professional tuning extracts better performance.

36 lb/hr injectors ($250-350): Aggressive naturally aspirated builds targeting 350-400 horsepower need 36 lb/hr injectors. These support enough fuel delivery for serious camshaft swaps, cylinder head work, and high-RPM operation. Custom tuning becomes mandatory—the PCM can’t properly compensate for the increased flow, causing rich conditions without recalibration.

42 lb/hr injectors ($300-400): Forced induction applications or nitrous systems require 42 lb/hr or larger injectors. The increased fuel demand under boost overwhelms smaller injectors, causing lean conditions that destroy engines quickly. Quality injectors from Bosch, Delphi, or ACCEL ensure proper fuel atomization and spray patterns for complete combustion.

Adjustable Fuel Pressure Regulator

Cost: $100-200
Installation: 1-2 hours

Adjustable fuel pressure regulators enable precise air/fuel ratio control, particularly important with larger injectors or custom engine combinations. Increasing fuel pressure effectively increases injector flow without changing the injectors themselves, though this approach has limitations.

The ability to fine-tune fuel pressure helps compensate for variations in injector flow rates, altitude effects, and modifications affecting engine volumetric efficiency. Proper tuning with a wideband oxygen sensor ensures safe, optimal air/fuel ratios throughout the operating range.

CSFI to MPFI Conversion

MFI Conversion Kit: $500-800
Installation: 4-6 hours

Converting from problematic Central Sequential Fuel Injection to proper Multi-Port Fuel Injection represents one of the most valuable modifications for early 5.7 Vortec engines. The CSFI “spider” injector system suffers chronic reliability issues, with poppet valves sticking and causing rough running, poor fuel economy, and difficult starting.

The conversion eliminates these problems permanently while improving fuel distribution. Each cylinder receives its own dedicated injector positioned directly in the intake port, providing better atomization and more even cylinder-to-cylinder fuel delivery. Power gains of 10-15 horsepower result from improved distribution and more precise fuel control.

Installation requires intake manifold removal and replacement of the entire fuel delivery system. While labor-intensive, the reliability improvement and performance gain make this modification essential for CSFI-equipped engines—particularly before undertaking other performance work.

6. Performance Camshaft and Valvetrain

Camshaft upgrades represent the most effective naturally aspirated modification, fundamentally transforming the engine’s power characteristics. A proper cam swap adds 40-80 horsepower depending on profile aggressiveness and supporting modifications.

Performance Gains: 40-80 HP depending on profile and supporting mods
Cost Range: $400-1,200 for cam and supporting valvetrain
Installation: Professional recommended ($800-1,200 labor)

Understanding Cam Profiles

Camshaft selection requires understanding how duration and lift affect the power band:

Duration refers to how long valves remain open, measured in degrees of crankshaft rotation. Longer duration shifts the power band higher in the RPM range, improving top-end power at the expense of low-end torque.

Lift determines how far valves open. More lift allows more air to flow during each valve opening event, generally improving power across the entire RPM range without significantly altering power band location.

Lobe separation angle affects valve overlap and engine characteristics. Wider LSA (110-114°) provides smoother idle and better vacuum; tighter LSA (106-108°) improves cylinder filling and power but creates rougher idle and less vacuum.

Camshaft Selection Guide

Mild Street Cam (Daily Driver):

Duration: 196/206° @ .050″
Lift: .450″/.460″
Power band: 1,500-5,000 RPM
Realistic gains: 35-45 HP

This conservative profile maintains excellent drivability while adding meaningful power. Idle quality remains smooth enough for comfortable operation with air conditioning in stop-and-go traffic. Vacuum remains adequate for power brakes and other vacuum-operated accessories without modification.

The broad power curve improves low-end torque, actually enhancing towing capability in many applications. The engine pulls harder from low RPMs through mid-range, making the truck feel more powerful in real-world driving situations. Compatible with stock torque converters and gearing, this cam requires no supporting modifications beyond valve springs.

Fuel economy decreases minimally—maybe 1 MPG—and the engine retains factory-like refinement during normal driving. When throttle is applied, the improved breathing delivers noticeably stronger acceleration. For trucks that must remain practical daily drivers, this represents the ideal choice.

Hot Street Cam:

Duration: 212/218° @ .050″
Lift: .480″/.490″
Power band: 2,000-5,500 RPM
Realistic gains: 50-60 HP

More aggressive profiles sacrifice some low-end for substantial mid-range and top-end gains. The slightly choppy idle announces the truck’s performance capability—that classic hot rod rumble that sounds mean at stoplights. Vacuum drops significantly, affecting power brake assist and potentially requiring vacuum canister or electric vacuum pump for adequate assist.

Torque converter upgrades to 2,000-2,200 stall speed become recommended to compensate for reduced low-RPM torque. The higher stall allows launching at engine speeds where the cam produces good power, improving acceleration despite the lower torque at idle speeds.

The power delivery transforms from docile to aggressive. Below 2,500 RPM, the engine feels soft; above 3,000 RPM, it comes alive with authority. This suits enthusiasts who accept daily driving compromises for serious performance gains. Stop-and-go traffic becomes more tedious with the lopey idle and reduced low-end power, but highway driving and spirited acceleration are dramatically improved.

Aggressive Street/Strip:

Duration: 224/230° @ .050″
Lift: .510″/.520″ (requires cylinder head work for clearance)
Power band: 2,500-6,000 RPM
Realistic gains: 65-80 HP

Dedicated race cams sacrifice nearly all street manners for maximum power. The rough, lopey idle draws attention—neighbors will know you have a modified truck before you leave the driveway. Vacuum drops dramatically, typically requiring electric vacuum pumps for brake assist and banning the use of vacuum-operated accessories.

High-stall torque converters (2,500+ RPM) become mandatory to overcome the minimal low-RPM power. Below 3,000 RPM, these engines feel gutless; above 4,000 RPM, they transform into power machines that pull hard to redline.

These cams belong in dedicated weekend warriors, race trucks, or vehicles where performance vastly outweighs daily drivability. Fuel economy plummets, and city driving becomes frustrating. However, for serious performance applications where the truck doesn’t face daily driver duties, the power gains justify the compromises.

Popular Cam Manufacturers

Competition Cams has earned their reputation through decades of producing reliable, well-documented camshafts. Their Xtreme Energy and Magnum series provide excellent options across the performance spectrum. Technical support helps you select appropriate profiles for your combination.

Lunati specializes in aggressive profiles while maintaining reasonable street manners. Their Voodoo series delivers impressive power with better idle quality than competitors’ equivalently aggressive grinds. Quality manufacturing ensures consistent lobe profiles and longevity.

COMP Cams remains the industry leader with the most extensive catalog and best technical resources. Their XE and XR series offer something for every application. The online cam selection tool helps identify appropriate profiles based on your vehicle specifications and performance goals.

Crane Cams pioneered many modern performance cam designs. Their Powermax series delivers excellent performance, though availability has decreased compared to earlier decades. Quality and performance remain excellent when you can source Crane products.

Supporting Valvetrain Components

Camshaft upgrades absolutely require supporting valvetrain modifications to prevent damage and ensure reliable operation:

Valve Springs ($150-250): Upgraded springs maintain proper valve control with increased lift and RPM. Stock springs allow valve float above 5,200-5,400 RPM and cannot handle lift beyond .480″. Performance springs prevent float to 6,000+ RPM while tolerating .520″+ lift.

Choose spring pressure matching your cam profile. Excessive pressure causes accelerated wear; insufficient pressure allows valve float and potential valve-to-piston contact. Beehive springs reduce valvetrain mass for better high-RPM control, while dual springs provide maximum pressure for extreme applications.

Rocker Arms ($200-400): Stock stamped steel rockers tolerate mild performance use but benefit from upgrades in serious builds. 1.5:1 stock ratio represents the baseline; 1.6:1 ratio rockers increase effective lift by 6.67% for more power with the same cam.

Roller tip rockers reduce friction and side loading on valve stems, improving efficiency and reducing wear. Chromoly construction handles higher spring pressures and RPMs without failure. Quality rockers from Crane, COMP, or Scorpion ensure proper geometry and reliable operation.

Pushrods ($100-200): Upgraded pushrods must handle higher spring pressures without deflecting. Hardened pushrods resist wear at the rocker and lifter interfaces, extending service life. Check pushrod length with your new cam and spring combination—height changes may require different length pushrods to maintain proper rocker geometry.

Timing Chain ($100-200): While not strictly required, replacing the timing chain during cam installation makes sense. Double roller timing sets provide better accuracy and durability than factory chains. The engine is already apart, making this simple preventive maintenance that prevents future failures. Adjustable timing chains allow fine-tuning cam timing for optimal performance.

7. Cylinder Head Modifications

The excellent Vortec heads provide strong baseline performance, but modifications extract additional power while addressing the platform’s limitations.

Head Porting

Professional CNC Porting:

Cost: $800-1,200
Flow increase: 210-220+ CFM intake (from 190 CFM stock)
Time: 2-3 weeks turnaround typical

CNC (Computer Numerically Controlled) porting uses programmed cutting tools to precisely optimize port shapes for maximum flow. Professional shops have developed proven programs specifically for Vortec heads, removing casting irregularities and enlarging strategically chosen areas without harming velocity.

The intake ports receive most attention, with bowl area work around the valves providing substantial gains. Combustion chamber work improves swirl and turbulence characteristics for better combustion. Exhaust ports are opened moderately—too large kills velocity and scavenging.

Quality CNC porting maintains or improves port velocity rather than simply maximizing flow. Proper velocity ensures strong low-end and mid-range torque while the improved flow supports high-RPM power. Expect 25-35 horsepower gains from proper porting combined with appropriate camshaft and exhaust modifications.

DIY Port Matching:

Cost: $50 in carbide bits and sandpaper
Gains: 5-10 HP
Time: 4-6 hours of careful work

Budget builders can perform basic port matching, aligning the intake manifold ports with the cylinder head ports. Gasket misalignment creates steps that disrupt airflow, costing power unnecessarily. Port matching eliminates these steps for smoother flow.

Mark the port outlines using intake manifold gaskets, then carefully remove material inside the heads to match. Work slowly and carefully—removing too much material can’t be undone. Smooth obvious casting flash and rough spots within reach of the intake ports.

Realistic expectations prevent disappointment: DIY port work adds 5-10 horsepower while teaching valuable skills. For serious flow gains, professional CNC porting remains necessary. However, port matching is worthwhile during assembly and costs almost nothing beyond time.

Valve Size Upgrades

Stock: 1.94″ intake / 1.50″ exhaust
Upgrade: 2.02″ / 1.60″
Cost: $300-500 including machine work

Larger valves increase flow potential, particularly at higher lifts where valve size becomes the primary restriction. The 2.02″ intake valve is borrowed from performance small-block applications, providing proven flow improvements.

Installation requires professional machine work: The valve seats must be cut to proper angles for the larger valves, valve guides may need work for clearance, and valve job specifications become critical. This isn’t a DIY project unless you have extensive machining experience and proper equipment.

The gains justify the cost primarily on engines making 400+ horsepower with aggressive camshafts and high RPM operation. Milder street builds benefit less—the stock valve sizes don’t become restrictive until you’re flowing serious air at high RPM. Combine valve upgrades with porting for maximum benefit, as improved port flow allows the larger valves to realize their potential.

Solving Lift Limitations

Stock Vortec heads limit valve lift to approximately 0.480″ due to valve spring retainer-to-valve seal clearance. Exceeding this causes mechanical interference, potentially damaging components or grenading the valvetrain.

Solutions:

Machine valve guides for clearance ($200): Professional machine work increases clearance between the retainer and valve seal/guide, allowing up to .520″-.530″ lift. This represents the most cost-effective solution for street performance cams.

Aftermarket retainers ($150): Low-profile retainers reduce overall height, increasing clearance without machine work. Quality retainers from COMP or Manley combine with appropriate valve locks and springs to enable .500″-.520″ lift safely.

Conversion to LS-style springs ($400): LS engine valve springs and retainers can be adapted to Vortec heads with the right components, allowing significantly more lift potential. This comprehensive approach supports .550″+ lift for serious race applications, though street engines rarely need this much lift.

Advanced Performance Modifications

These modifications represent serious commitments requiring substantial budgets, professional installation, and acceptance of some compromises. The power gains are dramatic, transforming the 5.7 Vortec from a truck engine into a genuine performance powerplant.

8. Forced Induction Systems

Adding boost transforms the 5.7 Vortec from a respectable 300-350 horsepower naturally aspirated engine into a 450-500+ horsepower monster. No other modification delivers such dramatic gains, though cost and complexity increase proportionally.

Supercharger Kits

Centrifugal Superchargers:

Centrifugal designs use an impeller spinning at extremely high speeds (50,000+ RPM) to compress intake air. They’re mechanically driven by a belt from the crankshaft, eliminating turbo lag while maintaining compact packaging and high efficiency.

ProCharger P-1SC System ($4,500-5,500):

ProCharger’s P-1SC system represents the gold standard for 5.7 Vortec applications. The self-contained design includes internal oil reservoir and circulation system, eliminating external oil feed/return line complexity. The stepped-up internal gearing achieves the extremely high impeller speeds necessary for efficient compression.

Running 6-8 PSI boost on 91-93 octane fuel, expect 120-150 HP gains on an otherwise stock engine. The complete kit includes the P-1SC-1 head unit, intercooler, mounting brackets, belt system, fuel management unit, and comprehensive instructions. Installation takes 15-25 hours for experienced mechanics.

The progressive boost delivery creates linear power characteristics—the harder you push, the more power you get, without the abrupt on/off feeling some positive-displacement superchargers exhibit. Excellent street manners make this ideal for daily-driven trucks wanting serious power without compromising drivability.

Vortech V-3 Si ($4,000-5,000):

Vortech’s V-3 Si delivers similar performance to ProCharger with slightly different characteristics. The self-contained oiling system requires no external plumbing, simplifying installation and improving reliability. Quiet operation makes it less obtrusive than some competitors during normal driving.

Expect similar power gains to the ProCharger—120-150 HP with conservative tuning on pump gas. The V-3 model uses Vortech’s latest compressor technology for improved efficiency and broader power delivery. Quality engineering throughout ensures reliable operation even under demanding conditions.

The slightly lower cost compared to ProCharger often makes this the choice for budget-conscious enthusiasts wanting proven centrifugal supercharging. Performance differences are minimal—either system transforms your truck’s capabilities dramatically.

Roots/Screw Blowers:

Positive-displacement superchargers deliver instant boost from idle, creating dramatically different power characteristics than centrifugal designs.

Weiand 177 Series ($3,500-4,500):

Weiand’s 177 Roots-style supercharger provides old-school appearance and instant boost response. The classic blower look appeals to enthusiasts wanting visible modifications—the supercharger sits prominently atop the engine, visible through the hood if you install a scoop.

Instant boost production creates immediate throttle response—the moment you touch the pedal, you feel forced induction working. This makes the truck feel incredibly strong in stop-and-go driving where most acceleration occurs. However, efficiency lags centrifugal designs, generating more heat and consuming more parasitic horsepower.

Expect 100-130 HP gains running 6-8 PSI boost. The gains come primarily in low-to-mid RPM range, exactly where trucks operate most. For street-driven applications prioritizing low-end punch over peak power, Roots blowers deliver addictive characteristics.

Turbocharger Systems

Single Turbo Setup (Custom):

Cost: $2,500-5,000 depending on complexity
Power potential: 150-300+ HP
Complexity: High—requires fabrication skills

Custom turbo installations offer maximum power potential at the cost of complexity. Exhaust manifold fabrication, custom piping, intercooler mounting, and oil system plumbing all require expertise and significant time investment. Most builders use fabrication shops rather than attempting DIY installation.

The potential rewards justify the effort for serious performance builds. A properly sized turbo can support 500+ horsepower while remaining efficient and tractable for street driving. Lag can be minimized with appropriate turbo selection—smaller turbos spool quickly but limit peak power, while larger turbos make massive power but suffer laggy response.

STS Rear-Mount Turbo ($3,500-4,500):

STS pioneered rear-mount turbo systems, positioning the turbocharger near the rear axle away from the hot engine bay. Simpler installation compared to traditional turbo setups results from avoiding complex underhood packaging challenges. The turbo mounts easily under the bed with straightforward plumbing.

Heat isolation keeps underhood temperatures lower since exhaust heat stays at the rear of the vehicle. This benefits engine cooling and reduces heat soak in intake components. The system produces 100-150 HP gains running 6-8 PSI boost—less than front-mount turbos but substantial nonetheless.

The extended plumbing creates noticeable lag compared to traditional turbo locations. Spool-up takes longer, making the power delivery less immediate. This system works best for highway acceleration rather than stoplight-to-stoplight performance where instant throttle response matters most.

Supporting Modifications for Boost

Forced induction absolutely requires comprehensive supporting modifications:

Lower compression pistons (8.5:1) ($800-1,200): The stock 9.4:1 compression is too high for significant boost on pump gas. Lower compression pistons allow 10-12+ PSI safely, though engine disassembly makes this modification expensive.

Forged connecting rods ($400-600): Stock powder metal rods handle up to 450 horsepower but should be replaced for serious forced induction. Forged rods handle 600+ horsepower reliably, providing peace of mind under boost.

MLS head gaskets ($150-200): Multi-Layer Steel gaskets seal more reliably under the increased cylinder pressures created by boost. They resist blowout better than composite gaskets, critical for forced induction longevity.

Intercooler system (if not included): Reducing intake air temperature prevents detonation while increasing power through denser air charge. Air-to-air intercoolers work well for most applications, though air-to-water systems provide better heat rejection for extreme use.

Upgraded fuel system ($600-1,000): 42+ lb/hr injectors and high-flow fuel pump supply adequate fuel under boost. Running lean under boost destroys engines quickly—proper fuel delivery is non-negotiable.

Engine management ($400-800): Custom tuning for forced induction requires expertise beyond basic handheld programmers. Professional tuning optimizes boost levels, fuel delivery, and ignition timing for maximum safe power.

9. Ignition System Upgrades

Optimizing spark delivery ensures complete combustion, particularly important at higher power levels or with forced induction.

Cost Range: $300-900 for complete systems

Distributor Upgrades

MSD Pro-Billet ($400-500):

MSD’s Pro-Billet distributor replaces the factory optical pickup with a reliable magnetic pickup that won’t fail like factory sensors. Adjustable advance curves allow customizing ignition timing progression to match your camshaft and engine combination.

Stronger spark output from the performance coil improves combustion consistency. The maintenance-free design eliminates points or other wear items requiring periodic attention. This represents the ultimate distributor upgrade for serious street/strip applications.

Performance Distributors DUI ($450-550):

Davis Unified Ignition (DUI) combines a high-output 50,000-volt coil directly in the distributor cap, simplifying installation through one-wire hookup. The integrated coil design reduces wiring complexity while ensuring optimal spark energy reaches the plugs.

Proven reliability comes from decades of street and race use. The simple installation appeals to enthusiasts wanting performance without complicated wiring modifications. Quality construction ensures years of trouble-free operation.

Ignition Boxes and Controllers

MSD 6AL ($300-400):

MSD’s multiple spark discharge technology fires the plugs multiple times per combustion cycle at low RPMs, ensuring complete combustion even with less-than-ideal air/fuel mixtures. At high RPM, it switches to single powerful sparks that ensure ignition despite increased cylinder pressure.

Built-in rev limiter prevents over-revving damage. Adjustable timing retard capabilities prove valuable for forced induction or nitrous applications where timing must be pulled under boost to prevent detonation. The 6AL has become an industry standard, with proven reliability across millions of installations.

Spark Plugs and Wires

NGK Iridium ($8-12 each):

NGK’s iridium plugs provide superior durability and consistent spark compared to traditional copper plugs. One heat range colder than stock prevents pre-ignition in modified engines running more timing or boost. Better thermal conductivity manages heat more effectively.

The fine iridium center electrode improves ignitability while extending service life to 60,000+ miles. For modified engines requiring more frequent inspection, consider copper plugs despite their shorter life—they’re cheaper and some tuners prefer their performance characteristics.

MSD 8.5mm Wires ($80-120):

Low-resistance spiral-wound conductors ensure maximum spark energy reaches the plugs without loss through resistance. RFI suppression prevents interference with electronic systems while heat protection withstands underhood temperatures without degradation.

The larger 8.5mm diameter provides better insulation than factory 7mm wires, preventing spark leakage that causes misfires. Quality terminals ensure positive connections that won’t loosen over time.

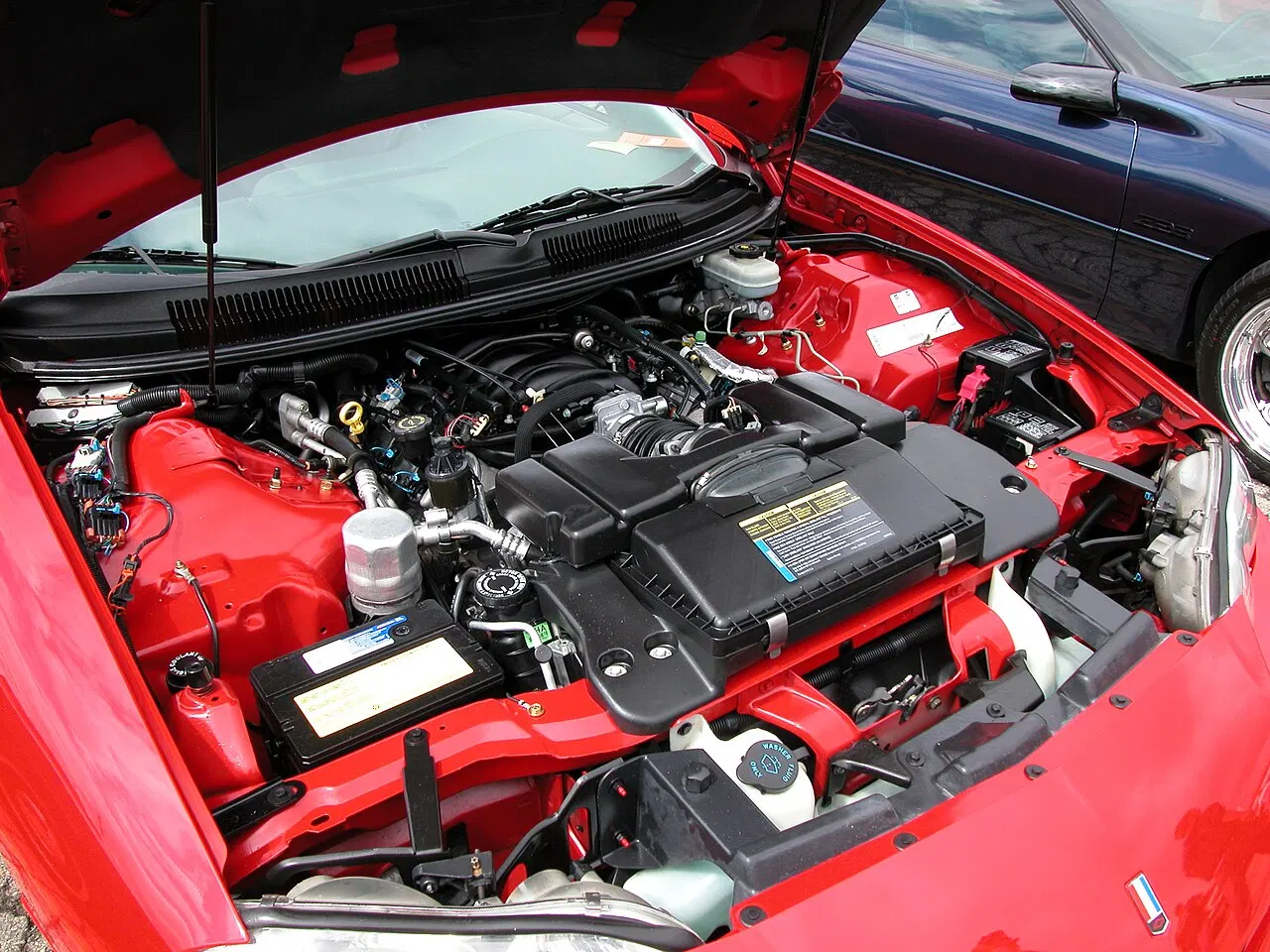

Supporting Modifications for Reliability

These upgrades ensure your increased power remains reliable rather than creating a truck that’s frequently broken.

10. Cooling System Upgrades

Essential for maintaining reliability with increased power—heat destroys engines quickly.

High-Flow Water Pump ($100-200): Increased flow rate prevents cavitation and hot spots while maintaining proper coolant circulation at all RPMs. Aluminum construction reduces weight while effectively transferring heat from coolant to the radiator.

Aluminum Radiator ($300-500): Better heat dissipation than factory radiators through larger core dimensions and improved fin design. Increased cooling capacity prevents overheating during towing, summer traffic, or performance driving. Dual electric fans replace mechanical fans, eliminating parasitic drag while improving cooling control.

Oil Cooler ($200-400): Maintains proper oil viscosity by preventing excessive oil temperatures. Essential for towing, racing, or any sustained high-load operation. Extended engine life results from preventing oil breakdown that causes accelerated wear.

180° Thermostat ($20-30): Allows cooler operation beneficial for performance applications. The 15-20°F reduction compared to stock 195° thermostats increases power slightly through denser air/fuel charges and reduces detonation risk. Requires PCM adjustment to prevent check engine lights from “engine not reaching operating temperature” codes.

11. Transmission Upgrades

The 4L60E automatic transmission requires attention when subjected to significantly increased power.

Shift Kit ($150-250): Firmer shifts reduce slippage and wear while improving performance feel. Modified valve body creates higher line pressure and quicker clutch engagement. Installation requires transmission disassembly, making this worthwhile during rebuilds but difficult as standalone modifications.

Torque Converter ($400-800): Stock converters stall at 1,400-1,600 RPM, too low for aggressive camshafts. Performance converters stalling at 2,200-2,800 RPM allow launching at engine speeds where modified engines produce good power, dramatically improving acceleration.

Match converter stall speed to your camshaft’s power band. Mild street cams work with 2,000-2,200 stall; aggressive cams need 2,500-2,800 stall. Too high creates excessive heat and poor cruising manners; too low prevents accessing the engine’s power.

Full Rebuild ($1,500-2,500): Comprehensive transmission rebuilds with performance components ensure reliability under increased power. Upgraded clutches, improved servos, and HD bands handle the additional torque without slippage or failure. For trucks making 400+ horsepower, transmission upgrades become mandatory rather than optional.

12. Differential and Drivetrain Optimization

Optimizing gear ratios improves acceleration while managing the increased stress from higher power levels.

Gear Ratio Recommendations:

• Stock 3.42: Good all-around balance, adequate for mild builds
• 3.73: Better acceleration without excessive highway RPM
• 4.10: Maximum acceleration with noticeable RPM increase on highway

Limited Slip Differential ($400-600): Better traction through even power distribution to both rear wheels. Essential for performance applications—one-wheel pegs don’t put power down effectively. Auburn, Eaton, or factory limited-slip units provide reliable operation.

Real-World Build Examples and Power Levels

Understanding realistic results from various combinations helps set appropriate goals and budgets.

Mild Street Build (300-320 HP)

Goal: Improved everyday performance, better towing, reliable daily driver

Modifications:

• Cold air intake ($300)
• Headers and cat-back exhaust ($900)
• Throttle body upgrade ($300)
• ECU tune ($400)

Total Cost: $1,900-2,500
Installation: DIY capable with mechanical experience

Expected Results:

• 45-65 HP gain over stock
• Improved throttle response throughout RPM range
• Better fuel economy potential
• Enhanced sound character
• Maintains complete daily drivability
• No compromise in reliability

This combination wakes up the 5.7 Vortec without requiring internal work or accepting compromises. The truck feels noticeably stronger in every driving situation while remaining practical for daily use and towing duties.

Hot Street Build (350-380 HP)

Goal: Serious street performance while maintaining street manners

Modifications:

• All mild build items
• Performance camshaft and valvetrain ($1,200)
• CSFI to MPFI conversion ($700)
• Performance torque converter ($600)
• Professional dyno tune ($600)

Total Cost: $4,000-5,500
Installation: Professional recommended for cam work

Expected Results:

• 95-125 HP gain over stock
• Transformed power delivery
• Some idle quality compromise
• Strong mid-range power
• Requires premium fuel
• Slight fuel economy decrease

This represents the sweet spot for street-driven performance trucks. The power increase is dramatic while drivability remains acceptable for trucks seeing varied use.

Max N/A Build (400-425 HP)

Goal: Maximum naturally aspirated power

Modifications:

• CNC ported cylinder heads ($1,000)
• Aggressive camshaft ($600)
• Complete valvetrain ($800)
• Full exhaust system ($1,200)
• Advanced engine management ($800)
• All supporting modifications ($1,000)

Total Cost: $7,000-9,000 plus labor
Installation: Professional required

Expected Results:

• 145-170 HP gain over stock
• Race-level naturally aspirated power
• Noticeable idle quality compromise
• Strong mid-to-high RPM performance
• Premium fuel mandatory
• Reduced low-end torque

This approaches the practical limit for street-driven naturally aspirated builds. Further gains require forced induction or extensive race modifications incompatible with street use.

Forced Induction Build (450-500+ HP)

Goal: Maximum power for street/strip use

Modifications:

• Supercharger or turbo system ($4,500)
• Forged internals ($2,000)
• Complete fuel system ($1,200)
• Upgraded transmission ($2,500)
• Supporting modifications ($1,500)

Total Cost: $11,500-15,000 plus labor
Installation: Professional mandatory

Expected Results:

• 195-245+ HP gain over stock
• Genuine performance machine capability
• Drivability varies by setup
• Premium fuel required
• Reduced fuel economy
• Regular maintenance critical

This transforms the 5.7 Vortec into a serious performance powerplant rivaling modern performance engines. The investment is substantial, but the results justify the cost for enthusiasts seeking maximum power.

Tuning and Optimization

Understanding PCM parameters and professional dyno tuning maximizes your modifications’ potential.

Understanding the PCM

The 5.7 Vortec uses a “black box” PCM that requires specialized tuning equipment and knowledge. Modern handheld programmers simplify this process for basic modifications, while professional tuning extracts maximum potential from heavily modified combinations.

Critical Parameters to Adjust:

Fuel tables control air/fuel ratios throughout the entire operating range. These tables have cells for every combination of RPM and throttle position, requiring comprehensive adjustment for optimal performance.

Ignition timing maps similarly cover every operating condition. Proper timing optimization provides the most significant power gains—often 15-20 horsepower from timing adjustments alone on modified engines.

Transmission shift points dramatically affect acceleration and drivability. Holding gears longer accesses more engine power before upshifting, improving acceleration times significantly.

Fan control temperatures affect when electric cooling fans activate. Slight adjustments reduce parasitic drag while maintaining safe operating temperatures.

Rev limiter settings determine maximum engine speed. Raising limiters allows using the engine’s full power potential without premature fuel cutoff.

Speed limiter removal eliminates artificial top speed restrictions that cut power during high-speed operation.

Dyno Tuning Process

Professional dyno tuning maximizes performance through real-time optimization:

Baseline pulls establish starting performance levels and identify obvious issues before beginning optimization. This provides before/after documentation and ensures the engine is mechanically sound.

Air/fuel ratio optimization adjusts fuel delivery throughout the RPM range for optimal power while maintaining safe combustion temperatures. Wideband oxygen sensors provide precise real-time feedback.

Ignition timing adjustment involves carefully advancing timing until signs of detonation appear, then retarding slightly for safety margin. This pushes timing to optimal levels without risking engine damage.

Part-throttle tuning ensures proper drivability during normal driving conditions. Many enthusiasts focus only on wide-open throttle tuning, but proper part-throttle calibration makes the truck more pleasant to drive daily.

Wide-open throttle optimization extracts maximum power during full-throttle operation through coordinated fuel and timing adjustments.

Street verification involves test driving the truck to ensure proper operation in real-world conditions that can’t be replicated on the dyno.

Expected Costs: $400-800 for comprehensive tuning including multiple pulls and revisions

Common Tuning Issues

Running Rich: Wastes fuel, fouls spark plugs, and reduces power. Black smoke from the exhaust indicates excessively rich conditions requiring fuel table adjustments.

Running Lean: Creates risk of detonation and catastrophic engine damage. Exhaust gas temperature monitoring helps identify lean conditions before engine damage occurs.

Timing Too Advanced: Causes knock, ping, and potential engine damage. Careful monitoring during dyno tuning prevents excessive timing advance.

Timing Too Retarded: Leaves power on the table while creating excessive heat. The engine makes less power and runs hotter than necessary.

Maintenance and Reliability Considerations

Modified engines require adjusted maintenance schedules to ensure longevity.

Service Intervals for Modified Engines

Oil Changes: Every 3,000 miles with high-quality synthetic oil. Modified engines work harder and generate more heat, stressing oil more than stock operation. Synthetic oil provides superior protection under demanding conditions.

Spark Plugs: Check every 20,000-30,000 miles for naturally aspirated builds, 10,000-15,000 miles for forced induction. Monitor plugs for signs of detonation, improper air/fuel mixture, or excessive wear.

Transmission Service: Every 30,000 miles including filter changes and fresh fluid. Heat from increased power accelerates fluid degradation, making frequent service essential.

Coolant Flush: Annual replacement maintains proper pH and corrosion protection. Modified engines generate more heat, stressing coolant more than stock operation.

Valve Adjustment: Check lash at 60,000 miles on hydraulic roller systems. Solid lifter conversions require more frequent adjustment—typically every 15,000-20,000 miles.

Common Problems and Solutions

Distributor Issues: The optical sensor in factory distributors fails frequently, leaving you stranded without warning. Upgrading to MSD or Performance Distributors units with magnetic pickups eliminates this failure point while improving performance.

Intake Manifold Gasket: Vortec engines commonly develop intake manifold gasket leaks, causing coolant loss and rough running. Upgrade to quality gaskets like Fel-Pro during any intake work. The composite factory gaskets deteriorate over time, particularly in performance applications generating more heat.

CSFI Spider Issues: The Central Sequential Fuel Injection spider system suffers poppet valve failures causing rough running, hard starting, and poor fuel economy. Converting to MPFI provides permanent solution while improving performance and reliability.

Head Gasket Concerns: Monitor for overheating symptoms and combustion leak indicators. White smoke, coolant loss, or persistent overheating suggest head gasket problems. Use quality MLS gaskets in performance applications, especially forced induction builds.

Cost-Benefit Analysis: Building Smart

Understanding return on investment helps prioritize modifications for your budget.

Best Value Path ($2,000-3,000)

For maximum bang-for-buck performance improvement:

• Cold air intake ($300): 8-12 HP, improved throttle response and sound
• Headers ($600): 20-25 HP, transformed exhaust note
• Cat-back exhaust ($500): 10-15 HP, completed breathing improvements
• ECU programmer ($400): 20-25 HP, optimizes all modifications
• Throttle body ($300): 8-12 HP, rounds out airflow improvements

Expected total gains: 60-85 HP for approximately $2,100 in parts

This combination delivers meaningful performance improvement at reasonable cost. The truck transforms from adequate to genuinely quick while maintaining daily driver practicality and complete reliability.

Maximum NA Value ($5,000-6,500)

For enthusiasts wanting serious naturally aspirated power without forced induction:

• Complete bolt-ons from above ($2,100)
• Performance camshaft package ($1,200)
• CSFI to MPFI conversion ($700)
• Performance torque converter ($600)
• Professional dyno tune ($700)
• Miscellaneous supporting modifications ($300)

Expected total gains: 110-140 HP for approximately $5,600 in parts

This represents the practical limit before requiring extensive machine work or forced induction. The power-to-cost ratio remains favorable while delivering performance that surprises modern vehicles. Your GMT400 truck becomes genuinely quick rather than merely adequate.

No-Compromise Build ($11,000-15,000)

For those seeking maximum power regardless of cost:

• Complete forced induction system ($5,000)
• Forged internal components ($2,000)
• Ported heads with upgraded valvetrain ($1,800)
• Complete fuel system upgrade ($1,200)
• Transmission rebuild with performance components ($2,500)
• Professional installation and comprehensive tuning ($2,500)

Expected total gains: 200-250+ HP for $15,000+ total investment

This creates a genuine performance machine rivaling or exceeding modern performance vehicles. The cost approaches what modern crate engines cost, but the satisfaction of building your engine justifies the expense for dedicated enthusiasts. This level of modification transforms the truck’s character completely.

Conclusion: Maximizing Your 5.7 Vortec’s Potential

The Chevy 5.7L Vortec engine represents an excellent platform for performance modifications, combining proven small-block architecture with modern cylinder head technology that responds beautifully to upgrades. Whether you’re seeking modest improvements for better towing capability or building a serious performance engine, the L31 delivers impressive results when modifications are thoughtfully planned and properly executed.

Starting with basic bolt-ons like cold air intakes, exhaust systems, and ECU tuning provides noticeable improvements for relatively small investments. These modifications alone add 50-70 horsepower while maintaining complete daily driver practicality. The truck feels stronger everywhere—stoplight acceleration, highway passing, towing capability—without compromising reliability or requiring compromises in daily use.

As you progress through camshaft upgrades and cylinder head work, the gains become more substantial. The Vortec’s excellent factory heads respond beautifully to porting and larger valves, supporting 400+ horsepower in comprehensive naturally aspirated builds. Combined with the right camshaft profile, supporting valvetrain components, and professional tuning, these engines deliver performance that rivals modern powerplants while maintaining the character and simplicity enthusiasts appreciate.

For those seeking maximum power, forced induction transforms this reliable workhorse into a genuine performance powerhouse. Supercharger or turbo systems can push output beyond 500 horsepower, creating a truck that embarrass modern performance vehicles while maintaining the straight-line grunt that makes these builds so addictive. The instant torque from low RPMs makes supercharged Vortec trucks feel dramatically more powerful than the horsepower numbers alone suggest.

The key to successful 5.7 Vortec modification lies in understanding the platform’s strengths and limitations. The excellent Vortec heads provide a strong foundation that outflows many aftermarket performance heads from earlier decades. The traditional small-block bottom end offers proven durability—forged steel cranks, adequate connecting rods, and robust engine blocks handle 450+ horsepower reliably in naturally aspirated applications. By addressing the few weak points—particularly the problematic CSFI fuel system—and building upon the engine’s inherent strengths, you create a powerful, reliable performance engine that rivals or exceeds more modern designs.

Remember that modifications should be matched to your intended use. A tow rig requires different considerations than a street performance truck—low-end torque matters more than peak horsepower, drivability trumps maximum performance, and reliability is non-negotiable. Conversely, weekend warriors and dedicated performance builds can accept compromises that daily drivers cannot, allowing more aggressive modifications that would prove frustrating in regular use.

Proper supporting modifications are essential for reliability at any performance level. Cooling system upgrades prevent overheating that destroys engines and reduces power through heat soak. Fuel system improvements ensure adequate delivery preventing dangerous lean conditions. Transmission upgrades handle the increased torque without catastrophic failure. These supporting modifications cost money and add complexity, but they separate successful builds from expensive failures.

With thoughtful planning, quality components, and appropriate supporting modifications, your 5.7 Vortec can deliver performance that surprises even those familiar with the platform’s capabilities. The combination of affordability, simplicity, and modification potential makes it an ideal platform for enthusiasts wanting serious performance without the complexity and cost of modern engines. Whether you’re building a daily driver with improved capabilities or creating a weekend warrior that dominates the street and strip, the 5.7 Vortec platform rewards your efforts with reliable, impressive performance that proves old-school small-blocks still have plenty to offer in the modern performance world.
